LB 234

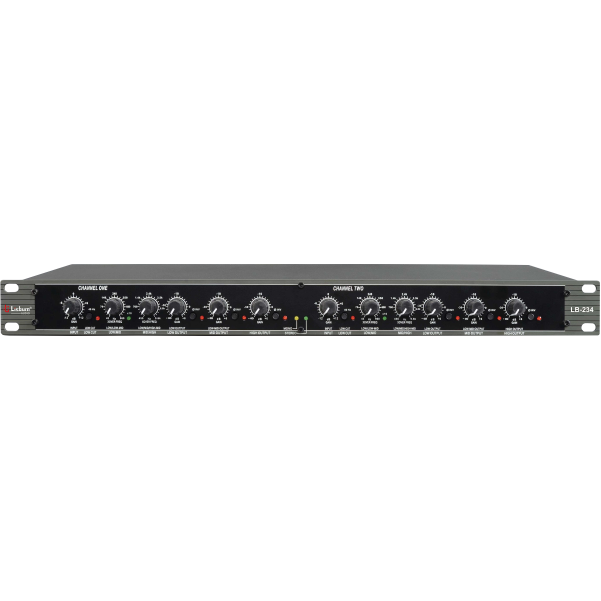

LISBURN Audio LB-234 Professional 2/3/4-Way Dual Channel Audio Crossover, Balanced XLR Inputs & Outputs, 24dB Linkwitz-Riley Filters, Mono/Stereo Modes, Subwoofer Output for PA, DJ & Studio
₹5,499
₹8,000
Key Features:
| Input Connectors : 1/4″ TRS, female XLR (pin 2 hot) |
| • Input Type : Electronically balanced/unbalanced, RF filtered |
| • Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm |
| • Max Input: >+21dBu balanced or unbalanced |
| • CMRR : >40dB, typically >55dB at 1kHz |
| • Output Connectors : 1/4″ TRS, male XLR (pin 2 hot) |
| • Output Type: Impedance-balanced/unbalanced, RF filtered |
| • Output Impedance: Balanced 100 ohm, unbalanced 50 ohm |
| • Max Output:>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
| • Bandwidth: 20Hz to 20kHz, +0.5/-1dB |
